TRUE FLEXDRAPER® NO COMPROMISE

The MacDon FD75 FlexDraper® is our latest innovation in FlexDraper technology. Even at maximum flex our fixed reel to cutterbar relationship stays true, maintaining a consistently small critical gap between the reel fingers and cutterbar. This close reel to cutterbar relationship results in smooth, consistent, heads-first feeding that significantly boosts combine productivity. That means you get up to 45’ (13.7m) of true ground following characteristics that won’t compromise performance.

SMOOTH, CONSISTENT, HEADS-FIRST FEEDING. IT’S WHAT SETS OUR MACHINES APART.

MacDon 5 Series Drapers are designed to provide smooth, consistent headsfirst feeding to the combine, even in the most challenging harvest conditions. Feeding crop heads-first is the best way to get the most performance out of your combine – burning less fuel and taking less time to process means getting the crop off quicker and more efficiently. HERE’S HOW WE DO IT…

Close Reel to Cutterbar Relationship – The MacDon FD75 features a fixed cutterbar to reel relationship. A small critical gap between the reel fingers and the cutterbar is maintained at all times, even when in full flex, ensuring smooth feeding of the crop over the entire width of the MacDon FD75 FlexDraper®Header.
Active Float System – The CA25 works with the auto-header-height-control of the combine which allows for instant float-response over changing ground conditions. Coil springs mechanically provide lateral and vertical float of the header, independent of the combine feeder house which allows the FlexDraper®to float over rolling and uneven terrain.
Reel Performance – The MacDon reel offers 4 adjustable cam positions, allowing you to select the setting that best suits your harvest conditions. Positions 1 and 2 are for fair harvest conditions with ripe standing crop and no green weeds or undergrowth. Positions 3 and 4 allow you to put the reel in front of and below the cutterbar for lifting downed and low podding crop. You can also use the header tilt and fore-aft reel positioning for even more aggressive action when required.
True Ground Following Characteristics – The MacDon FD75 is a floating, three-section flexible header with a split reel allowing the entire header frame, cutterbar, and reel to follow ground contours as a unit, flexing up to 254 mm (10″) on either end, while maintaining a close reel to cutterbar relationship. This unique three-section design lets the FD1 FlexDraper® deliver smooth, consistent, head-first feeling to the combine, even at extreme flex.

Product Highlights:

Conforms to the ground with minimal ground pressure.
Can be easily and quickly locked into rigid configuration.
The reel is easily adjustable to one of 4 cam positions to match harvest conditions.
Hydraulically adjusted reel fore-aft and header tilt functions allow easy, on-the-go changes for harvesting conditions.
The C-shaped cutterbar promotes smoother crop flow with one of the industry’s shortest transitions from cutterbar to the draper. Even in shatter-prone crops, it maintains a tight draper to cutterbar seal for better harvest performance.
Featuring the proven durability of the MacDon wobble box drive, the hydraulic knife drive enables adjustments to the sickle speed based on specific harvesting conditions.
Spare knife storage is now provided on 40’ (12.2m) and 45’ (13.7m) double knife headers.

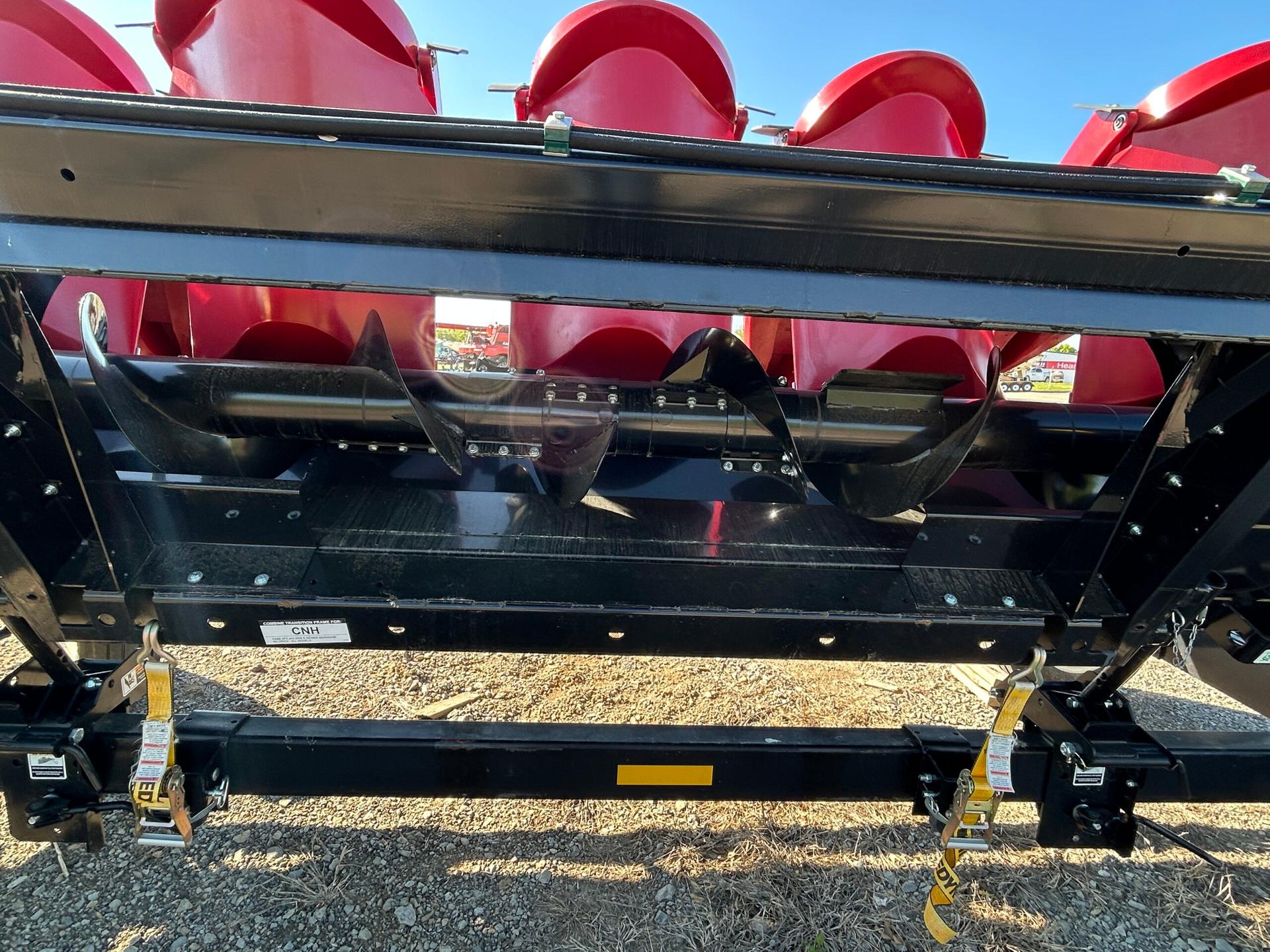

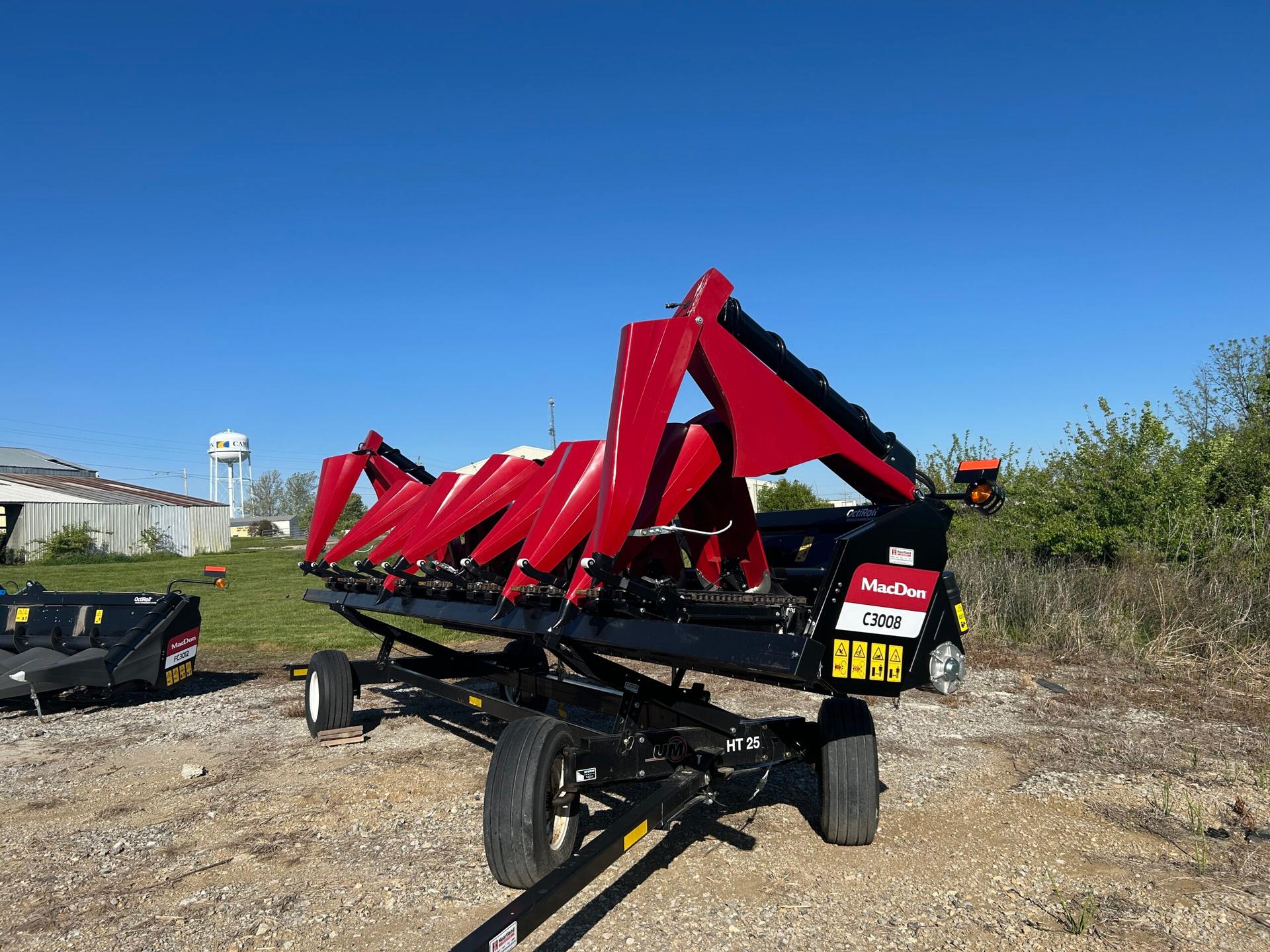

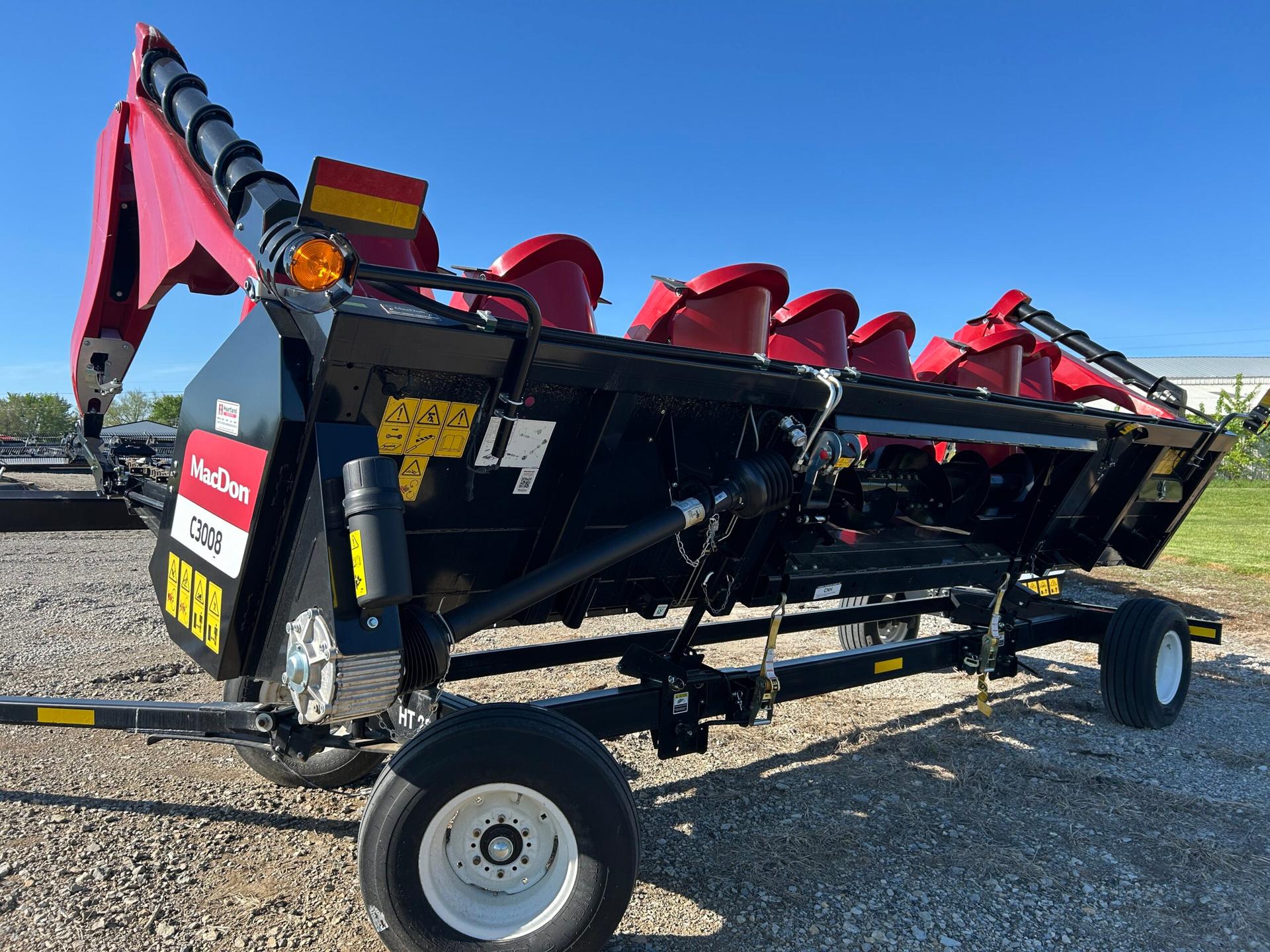

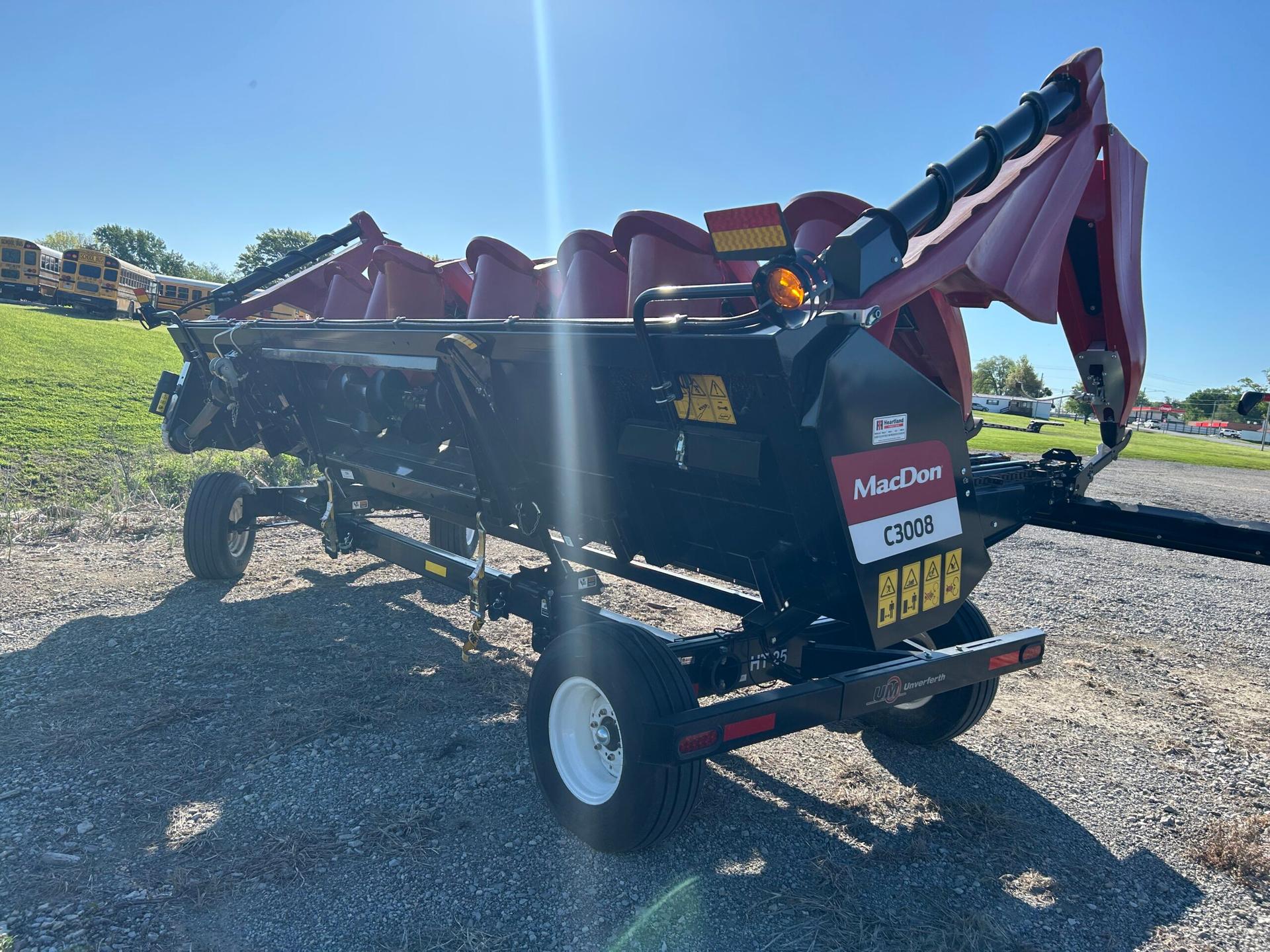

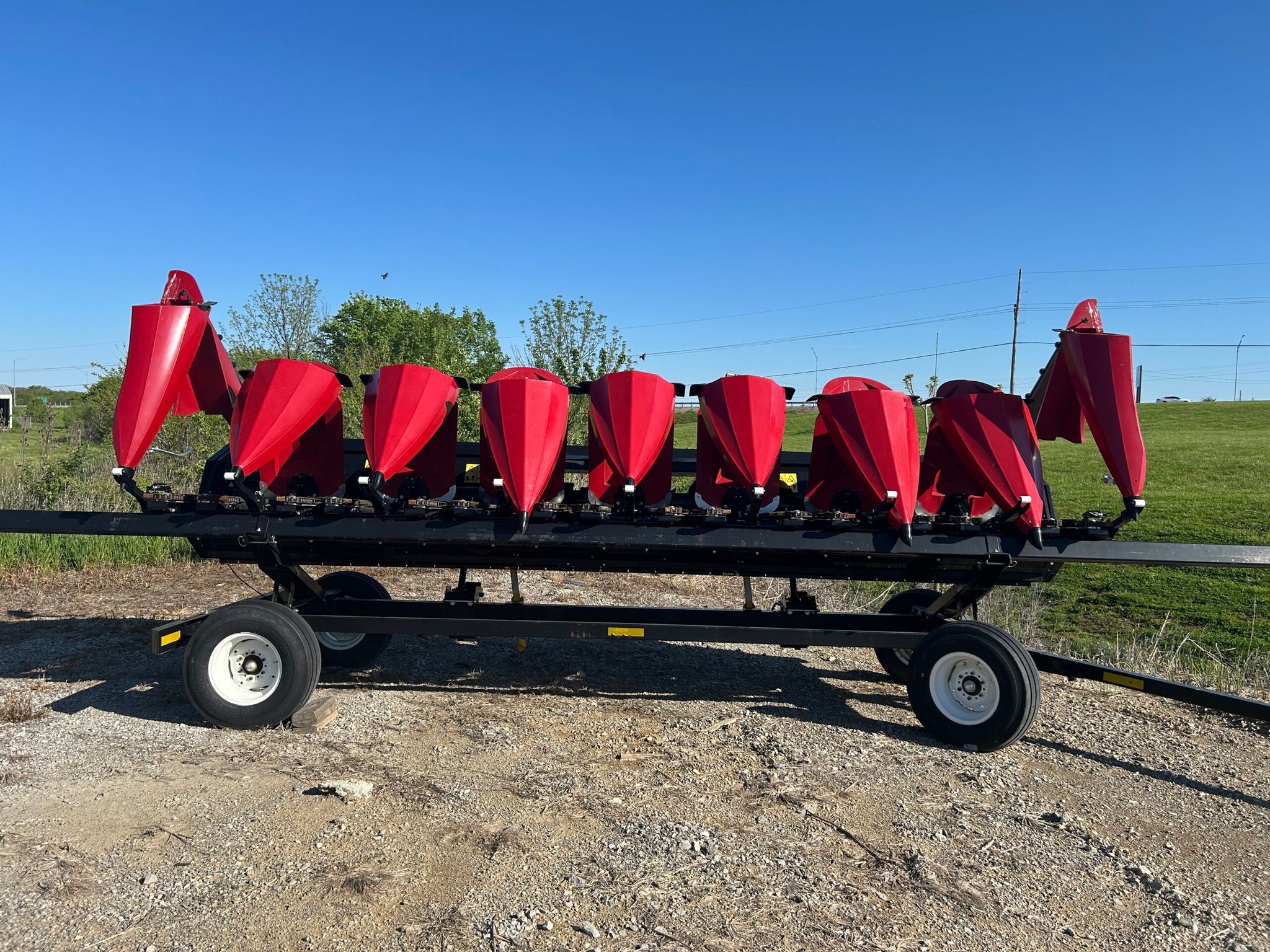

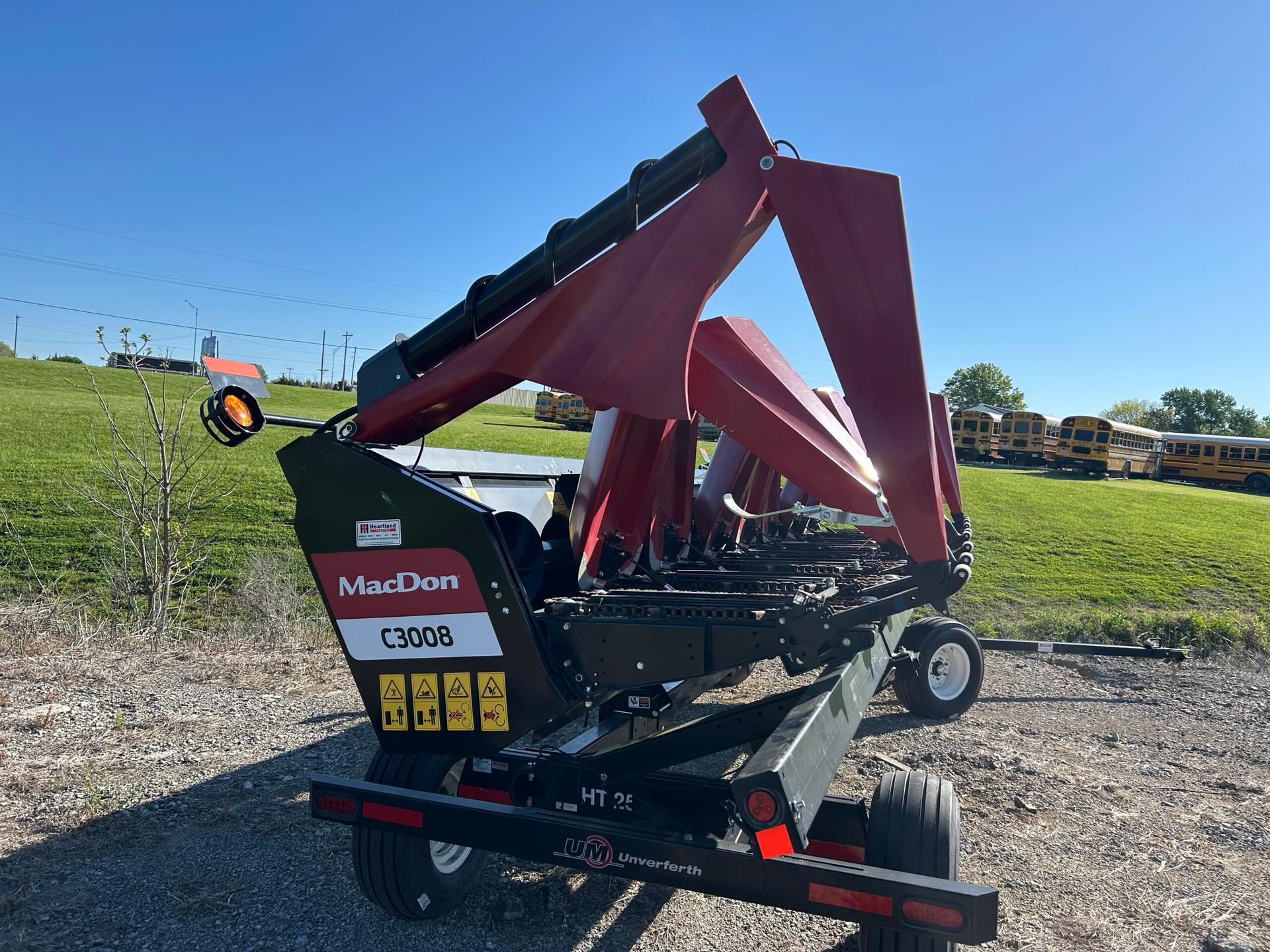

MACDON C3008 HEADER-CORN

$76,500.00

013615

495523-24
